48v 100ah 200ah cartref cyfanwerthu pŵer hybrid wal wedi'i osod ar storio pecyn batri lithiwm lifepo4 y gellir ei ailwefru

2023-08-18 06:01

Manyleb

Model Rhif	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
foltedd	48/51.2V	48/51.2V	48/51.2V
Capasiti	100Ah	150Ah	200Ah
Ynni	5.12kwh	7.68kwh	10.24kwh

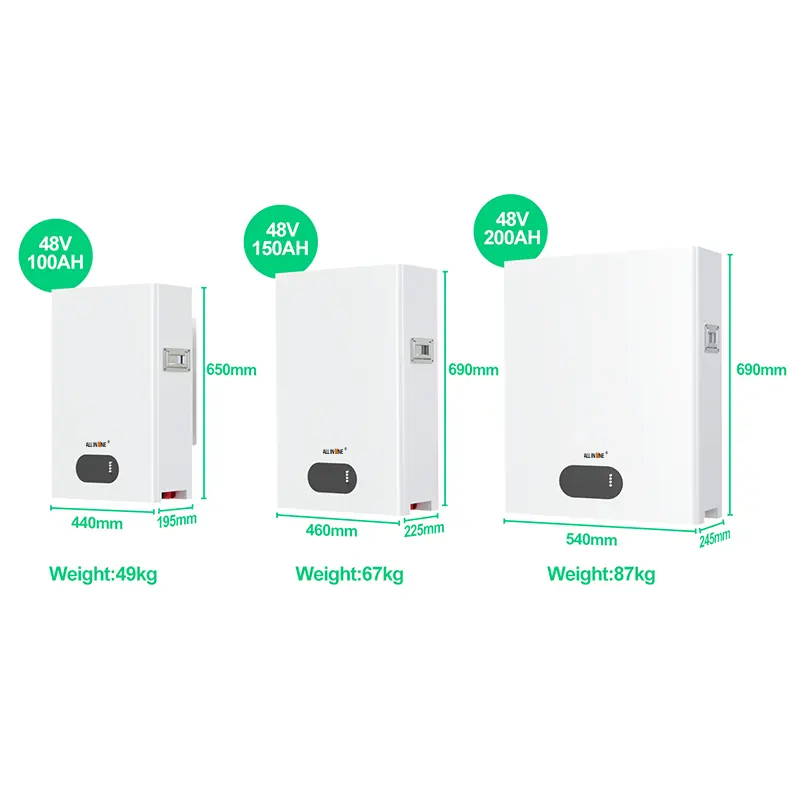

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Pwysau	49kg	67kg	87kg
Paramedrau Sylfaenol
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Tymheredd Ymgyrch	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Tymheredd Storio	0°C i 45°C @60+/-25% Lleithder Cymharol	0°C i 45°C @60+/-25% Lleithder Cymharol	0°C i 45°C @60+/-25% Lleithder Cymharol
Safon Batri Lithiwm	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Pŵer Max	5120W	7680W	10240W

Ein Ffatri

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

Cwestiynau Cyffredin

C: Ydych chi'n gwmni neu'n gwneuthurwr masnachu?
A: We are ALL IN ONE original factory.

C: A allaf gael samplau i'w profi? A beth yw'r amser arweiniol ar gyfer trefn sampl?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

C: A ydych chi'n darparu gwasanaeth ôl-werthu?
A: Ydy, mae'r warant yn 12 mis, os bydd unrhyw broblemau ansawdd ar ein hochr ni yn y cyfnod hwn, gallwn anfon un newydd yn ei lle.

C: A ydych chi'n derbyn OEM / ODM?
A: Ydy, mae ar gael.

C: A ydych chi'n gallu go iawn batri?
A: Pob un o'n celloedd batri sydd â Gradd A, capasiti newydd a real 100%.

C: Pa fath o dystysgrifau sydd gennych chi?
A: Gallwn ddarparu CE, ROHS, FCC, IEC62133, MSDS, UN38.3 os yw maint eich archeb yn fawr.

C: Oes gennych chi MOQ?
A: Dim cyfyngedig. Mae archeb fach hefyd yn cael ei chroesawu. Mae gan well maint bris gwell, byddwn yn gwirio'r pris gorau i chi.

C: Beth yw eich tymor talu?
A: Rydym yn mabwysiadu T / T, Paypal, ffordd dalu Alibaba ac ati.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
