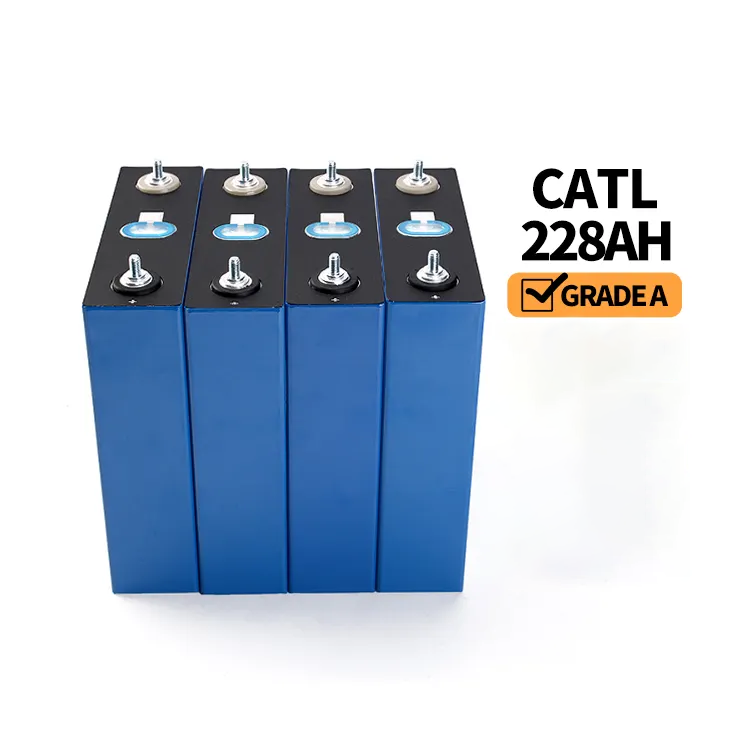

CATL 230Ah 228Ah 3.2V Lifepo4 Prismatic Lithium Battery Cells For Solar Bank Energy Storage

2023-06-08 06:11

Manyleb

Supplier	POB UN YN UN Technoleg Batri Co Cyf
Model	CATL LF228 230Ah LiFePO4 3.2V Battery cell
Capasiti Go Iawn	Tested over 230Ah
Foltedd Enwol	3.2v
Gollwng Max Cyfredol	1C/ 230A
Foltedd Tâl Max	3.65V
Gwrthiant Rhwystr AC	≤0.5mΩ
Tymheredd Codi Tâl	0-60℃
Tymheredd Rhyddhau	-30-60 ℃
Bywyd Beicio	6000 times SOC 80%
Pwysau	4.2kg
Dimensiynau (L * W * H)	17454208mm
Ceisiadau	Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power

Nodwedd
1. Capasiti uchel a foltedd rhyddhau sefydlog
2. Amser gweithio hirach gyda pherfformiad uchel
3. Pwysau ysgafn gyda maint bach
4. Priodweddau gollwng rhagorol a gwrthiant mewnol bach
5. Dim effaith cof, gallu rhyddhau da a llwyth uchel a gwrthsefyll tymheredd uchel
6. Heb lygredd ar gyfer diogelu'r amgylchedd
7. 100% Batri ailwefradwy li-ion gwreiddiol dilys
8. Bwlio mewn amddiffyniad gwrth-ffrwydrad ac amddiffyn cylched

9. Long cycle life 5000 times

10. Good consistency, low self discharge

Nodyn

1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

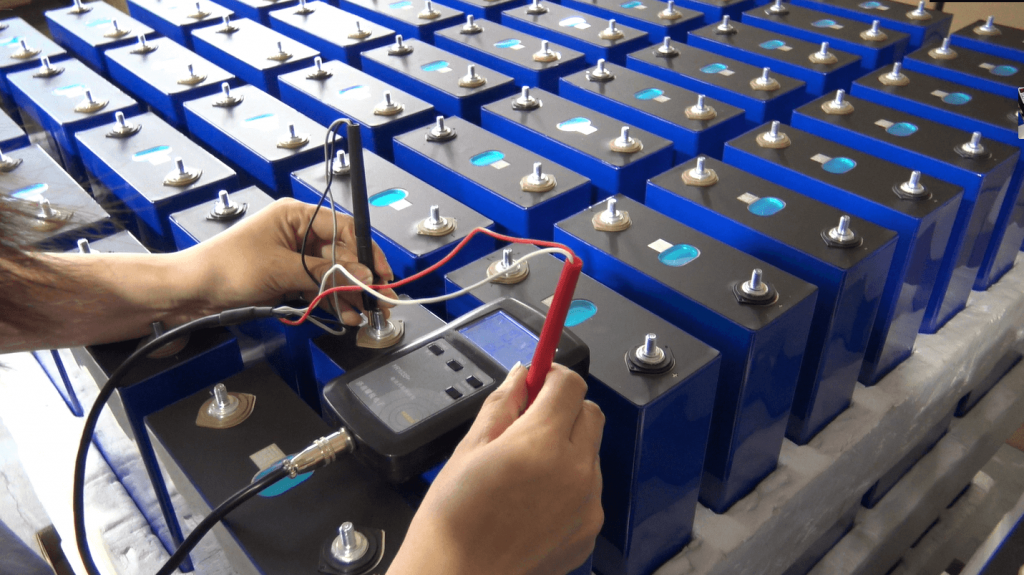

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.

Important & Warmly Reminder

Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.

Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.

Nid yw'r sefyllfaoedd hyn yn darparu enillion nac ad-daliad
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.

*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.

Courier a logisteg
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.

Cais

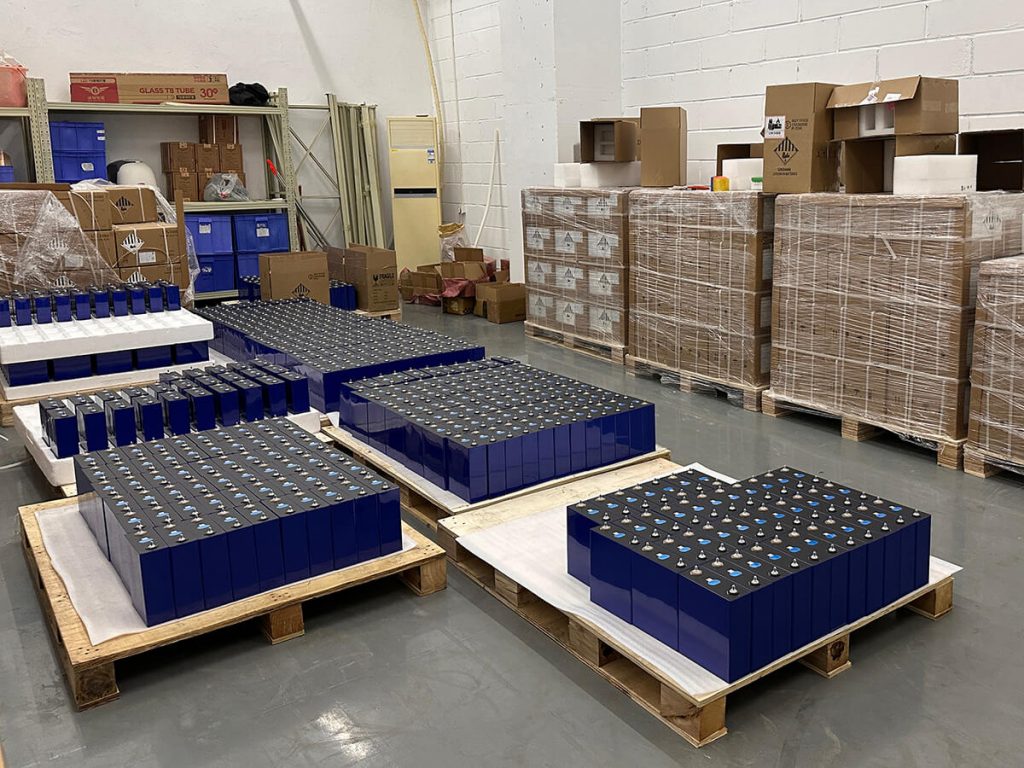

Ein Ffatri

Pam Dewis Ni

1. Rydym yn gyflenwr gyda 10 mlynedd experiences.All ein eitemau yn dod gyda safon uchel a gwasanaeth da ar ôl-werthu.

2. Tîm proffesiynol, technegol, cynhyrchu a gwasanaeth ar gyfer eich gwasanaeth.
3. Ansawdd Sefydlog - Dewch gan gyflenwr deunydd uwchraddol a system rheoli ansawdd berffaith.
4. Pris cystadleuol nag unrhyw gyflenwyr eraill.
5. Gwasanaeth 7/24 i chi, bydd yr holl gwestiwn yn cael ei ddelio o fewn 24 awr.

Pacio A Llongau

Cwestiynau Cyffredin

C1. A allaf gael gorchymyn sampl ar gyfer batri ïon lithiwm?
A: Ydym, rydym yn croesawu archeb sampl i brofi a gwirio ansawdd. Mae samplau cymysg yn dderbyniol.C2. Beth am yr amser arweiniol?
A: Mae angen sampl 3-5 diwrnod, mae angen 1-2 wythnos ar amser cynhyrchu màs ar gyfer archebu maint yn fwy na

C3. A oes gennych unrhyw derfyn MOQ ar gyfer batri lithiwm?
A: Mae MOQ Isel, 1pc ar gyfer gwirio sampl ar gael

C4. Sut ydych chi'n llongio'r nwyddau a pha mor hir mae'n ei gymryd i gyrraedd?
A: Rydyn ni fel arfer yn llongio gan DHL, UPS, FedEx neu TNT. Fel rheol mae'n cymryd 3-5 diwrnod i gyrraedd. Mae llongau hedfan a môr hefyd yn ddewisol.

C5. Sut i symud ymlaen archeb am batri ïon lithiwm?
A: Yn gyntaf, gadewch i ni wybod eich gofynion neu'ch cais.
Yn ail Rydym yn dyfynnu yn ôl eich gofynion neu ein hawgrymiadau.
Yn drydydd, mae'r cwsmer yn cadarnhau'r blaendal samplau ac yn gosod archeb ffurfiol.
Yn bedwerydd Rydym yn trefnu'r cynhyrchiad.

C6. A allwn lofnodi cytundeb cyfrinachedd os ydym am adeiladu perthynas fusnes hirdymor?
A: Cadarn, rydym yn parchu gofynion cleientiaid, yn dod â mwy o fudd i chi.

C7: A ydych chi'n cynnig gwarant ar gyfer y cynhyrchion?
A: Ydym, rydym yn cynnig gwarant 12 mis i'n cynhyrchion.

C8: Ydych chi'n derbyn OEM / ODM?
A: Cadarn, mae'r archeb wedi'i haddasu ar gael, gyda'n pleser i wasanaethu arnoch chi.

Q9: How long does it take to recharge the battery?
A: usually it takes 5 hours with 20A standard charger.

Nodyn: Rydym yn wneuthurwr batri. Nid yw'r holl gynhyrchion yn cefnogi manwerthu, dim ond B2B business.please cysylltwch â ni am brisiau cynnyrch!
