Batri Ffosffad Haearn Lithiwm Lifepo4 72V 50Ah Ar gyfer Cert Golff RV Beic Modur Ebike

2023-06-01 02:15

Manyleb

Foltedd Enwol	72V
Cynhwysedd Enwol	50Ah
Gwrthiant Mewnol	≤220mΩ
Bywyd Beicio	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6V
End of charge Current	100mA
Max.Continuous charge current	50A
Dull Codi Tâl	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
Pwysau	≤20Kg
Wedi'i adeiladu mewn System Diogelu Batri Awtomatig	Ydw

Charge plugs and Discharge connectors optional

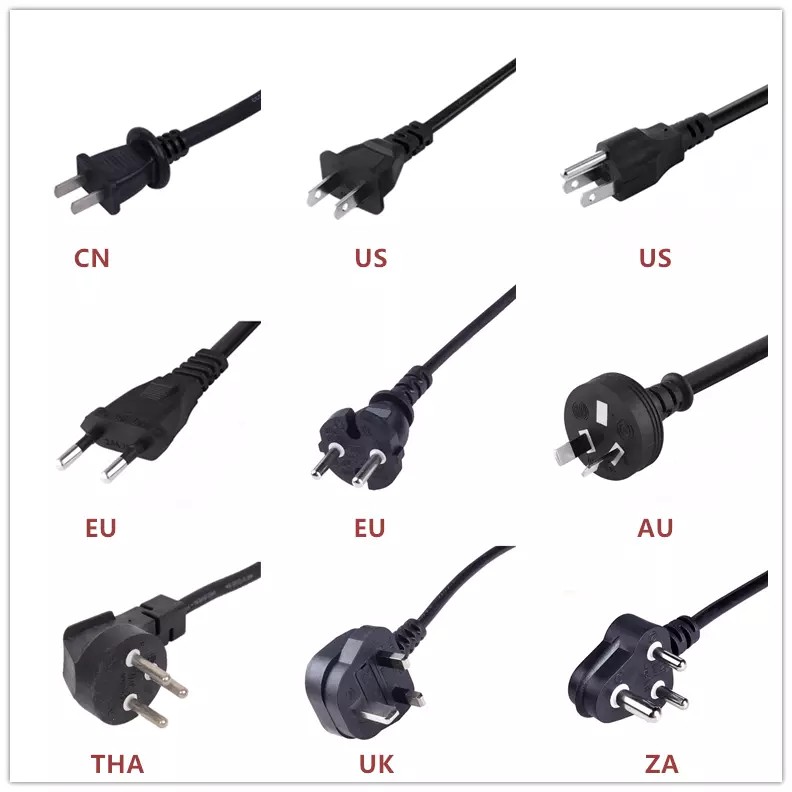

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

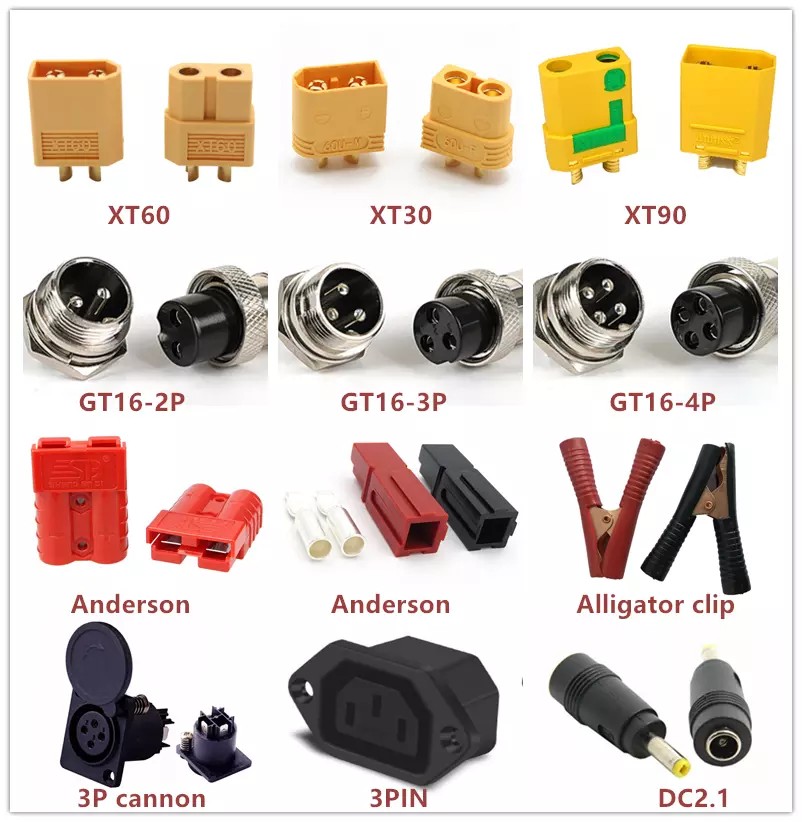

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

Nodweddion

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

Gwrthiant gor-ollwng 4.Strong a chadw gwefr

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 Cais

Ceisiadau

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



Ein Ffatri

Cwestiynau Cyffredin

1, C: Beth yw'r prif gynnyrch yn AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, C: Beth yw gordal?
A: Ar ôl codi tâl, profi cyflwr cychwynnol a chynhwysedd y batris. Codi tâl i 10.0V ar 3C cyfredol, yna codi tâl i 0.01C yn y modd CV.
Arsylwi newidiadau mewn ymddangosiad batri.
3, C: Beth yw gor-ryddhau?
A: Ar ôl codi tâl, profwch gyflwr cychwynnol y batris. Pan fydd y batris yn normal, gollyngwch i 0V ar 0.5C. Arsylwi newidiadau yn
ymddangosiad batri.
4. C: A allaf gael gorchymyn sampl?
A: Ydym, rydym yn derbyn gorchymyn sampl i brofi a gwirio ansawdd. Gellir gwneud batris yn ôl yr angen.
5. C: A oes gennych derfyn MOQ?
A: Oes, mae gennym derfyn MOQ ar gyfer cynhyrchu màs, ond mae'n dibynnu ar fodel y batri. Cysylltwch â ni am fanylion.
6. C: Beth am yr amser arweiniol?
A: Bydd samplau yn cymryd 5-7 diwrnod busnes. Bydd cynhyrchu màs yn cymryd 25-30 diwrnod. Mae'n dibynnu ar faint.
7. C: Beth am amser cludo a danfon?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. C: Beth am wasanaeth ôl-werthu?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
