Batri Pŵer Storio Ynni Solar LiFePO4 12V 100Ah

2024-02-28 03:19

Manyleb

Overview	Grade A Lifepo4 12V 100Ah 200Ah 24V 100Ah Solar Energy Storage Battery for Home Lithium ion Battery Pack #Grade A Blade Pouch Cell #Built-in 100A BMS #LCD Capacity Display #2 Hrs Charge Up to 80%, 50A Charging Current #IP65 Rated Gives Protection Against Low Pressure Water #5-Year Warranty
Manylebau	BASIC SPECIFICATIONS	Model: 12V 100Ah
		Rechargeable:Yes
		Cell Type:LiFePO4 (LFP) Pouch Cell

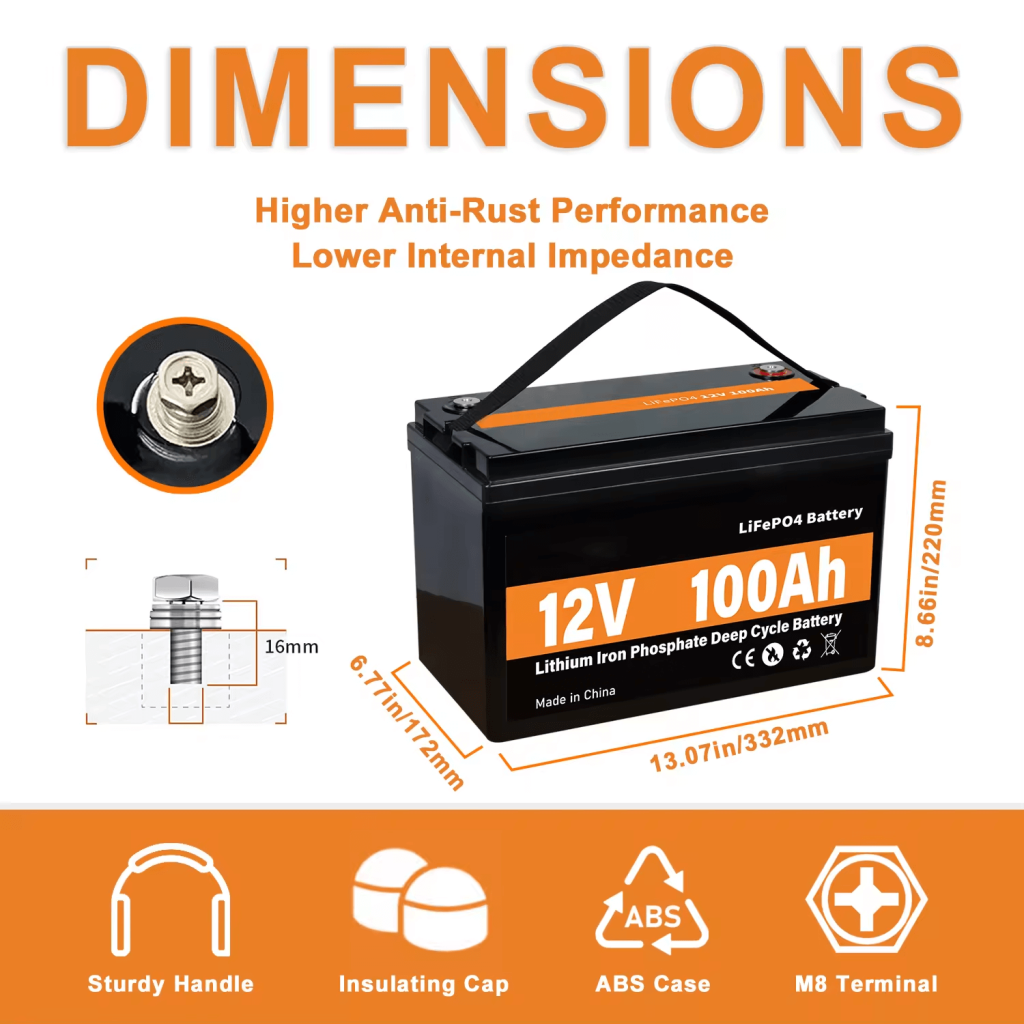

		Dimensions: L13.19 * W7.28 * H8.46 ” L335 * W185 * H215 mm
		Case Material:ABS
		Warranty:5 Years
	ELECTRICAL     SPECIFICATIONS	Nominal Voltage: 12.8V
		Nominal Capacity: 100Ah
		Nominal Energy: 1280 Wh
		Standard Charge Voltage: ≤14.6 V
		Max Charge Current: 50A
		Discharge Cut-Off Voltage: ≥10V
		Max Discharge Current: 100A
		Internal Resistance: ≤30mΩ
	PERFORMANCE SPECIFICATIONS	Cycle Life: ≥4000 Times (80%DoD)
		Service Life: 10 Years (25°C/77°F）
		Charge Temperature Range: 0~45°C (32~113°F)
		Discharge Temperature Range: -20~60°C (-4~140°F)
		Protection: IP65, Built-in BMS



In addition to the LiFePO4 battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

Key features

1. Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
2.  The shell is anti-aging, anti-corrosion, fireproof and waterproof

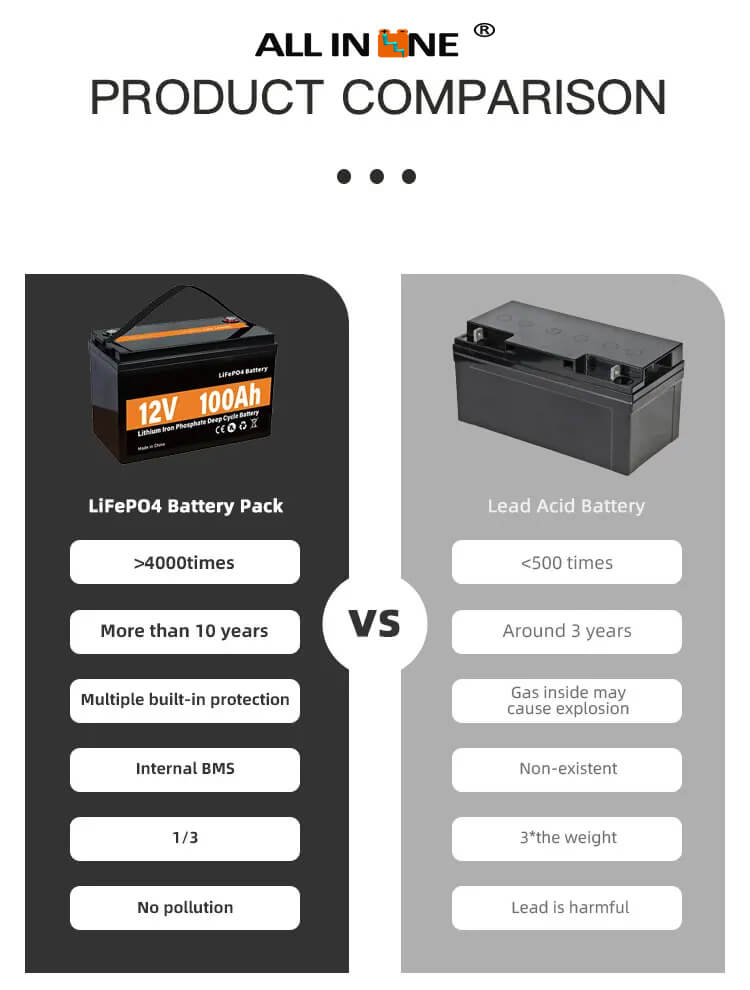

3. It replaces lead-acid batteries, which is 50% lighter
4.  Wide temperature operation
5.  Safe and reliable, no explosion
6.  Variety of protections, overcharge, overcharge, over current, over-temperature protection
7.  Easy operation, plug and play
8. More than 6000 cycle life

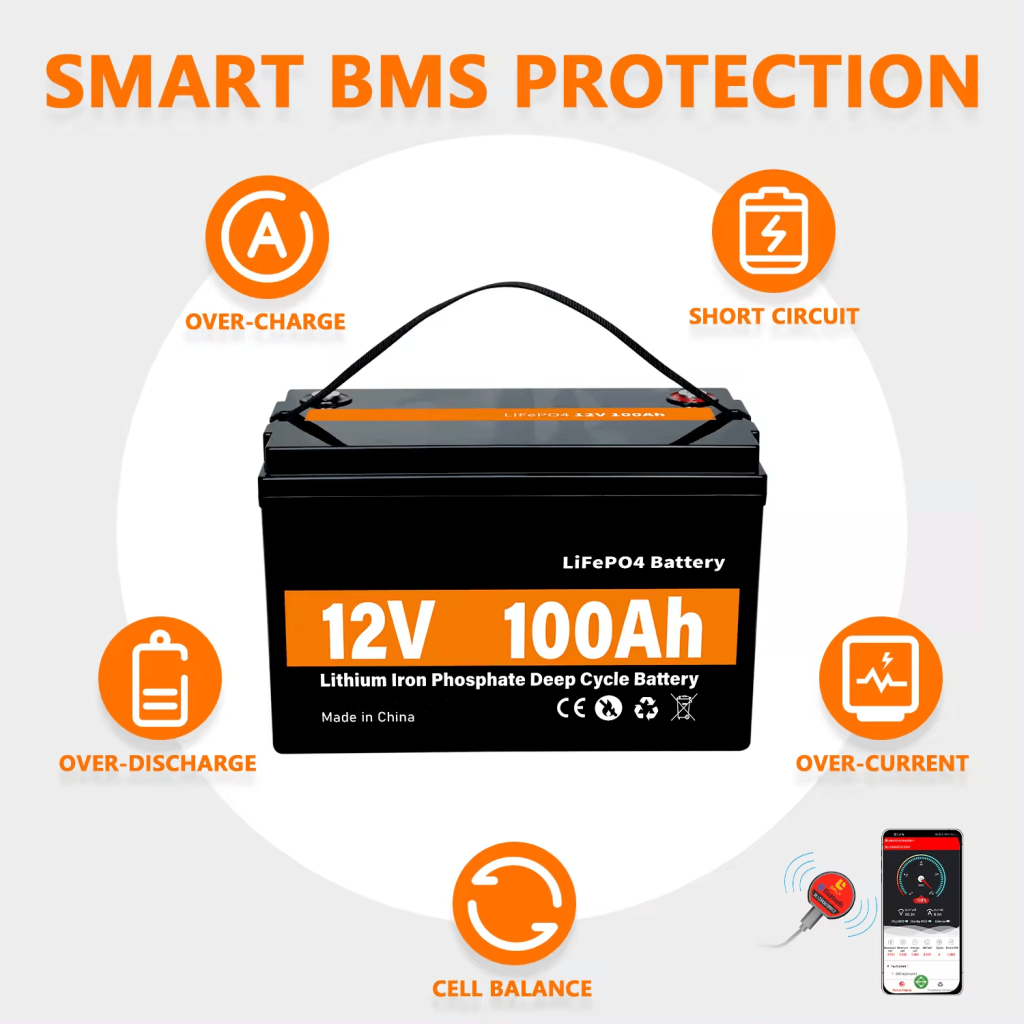

Wedi'i adeiladu yn amddiffyniad cyffredinol BMS
1.Over amddiffyniad a godir
2.Over amddiffyniad wedi'i ryddhau
Amddiffyn 3.Thermal
Amddiffyn llwyth 4.Over
5.Over amddiffyniad cyfredol

Cais

Ceisiadau Batri LiFePO4
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup etc.

Ein Ffatri



Packing And Shipment



Cwestiynau Cyffredin

1.Q: Ydych chi'n cefnogi archeb sampl?

A: Ydw, croeso i archebu sampl, mae gennym warysau yn yr Unol Daleithiau ac Ewrop, gellir cludo rhai samplau yn gyflym.

2.Q: A oes gan y cynnyrch BMS adeiledig?

A: Ydy, mae BMS deallus gan gynnwys JBD/PACE/SmarTec wedi'i gynnwys i sicrhau bod batris yn cael eu rheoli'n annigonol.

3.Q: Can your company accept customized order?

A: Wrth gwrs, addasu yw ein cryfder.

4.Q: A all y pecyn batri fod yn gydnaws â'r gwrthdroyddion ar y farchnad?

A: Ydw syr, mae ein pecynnau'n gydnaws â mwy nag 20 o frandiau gwrthdroyddion ar y farchnad gan gynnwys Victron, Goodwe, Solis, Growatts, Voltronics, Deye a brandiau enwog eraill.

5.Q: Sut mae'r Warant?

A: 5 years up-to its usage.

6.Q: Oes gennych chi unrhyw ardystiadau?

A: CE, UN38.3 and MSDS, Pack UL1973.

7.Q: Sut mae'r ffordd a'r amser dosbarthu?

A: Overseas warehouse (USA & Euro) will make quick delivery for small order. 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Oes gennych chi ffatri go iawn?

A: Yes, our factory is in Anhui Province. We welcome you to visit our factory.
