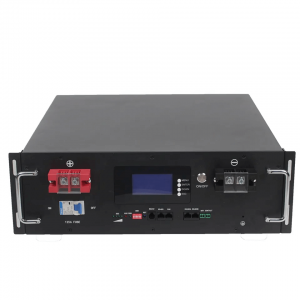

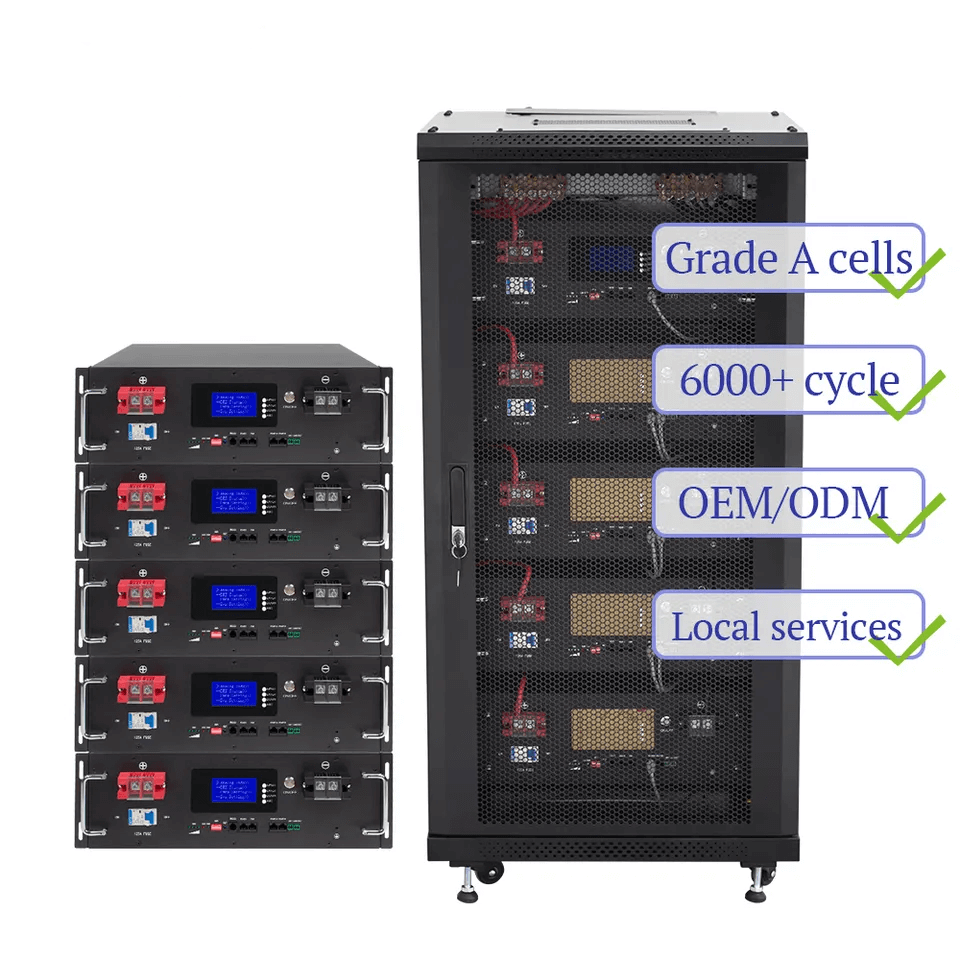

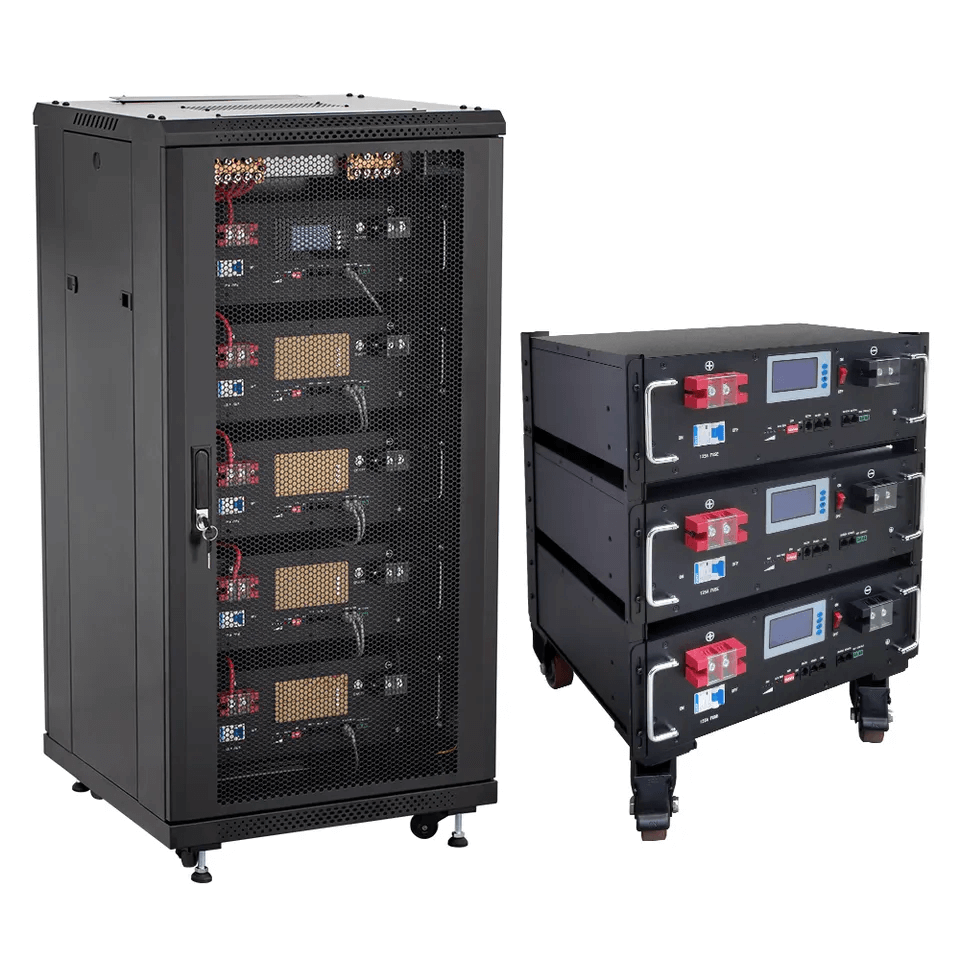

Rack Batri Batri Ion Lithiwm 48V 100Ah 200Ah 5KWH 10KWH Pecyn Batri Storio Pŵer Solar

2023-07-27 06:25

Manyleb

Model4850481004815048200
Foltedd Enwol48V/51.2V(optional)
Capasiti50100150200
Ynni2.4KWH5KWH7KWH10KWH
Gwrthiant Mewnol≤60mΩ
Bywyd Beicio≥5000cycles@80%DOD,25℃,0.5C
≥4000cycles@80%DOD,40℃,0.5C
Bywyd Dylunio≥10 years
Foltedd Torri Tâl53V ±0.5V(15S);56.0V±0.5V(16S);
Max. Continuous
Work Current
50A100A100A/150A100A/150A/200A
Foltedd Torri Rhyddhau45V±1.0V(15S);48V±1.0V(16S);
Tymheredd Tâl0℃~60℃ (Under 0℃ extra heating mechanism)
Tymheredd Rhyddhau-20℃~60℃ (Under 0℃work with reduced capacity)
Tymheredd Storio-40℃~55℃ @ 60%±25% relative humidity
Pwysau28507095
Dimensions(mm)520*590*180mm

520*480*220mm

520*500*270mm

520*500*310mm

520*600*270mm

520*600*310mm

520*730*270mm

520*730*310mm

Protocol (optional)RS232-PC,RS485(B)-PC
RS485(A)-Inverter,Can bus-Inverter
ArdystiadUN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

LFP battery technology without cobalt
Battery equalizers to balance voltage gaps among batteries
Compatible with more than 20 brands inverters
Golf cart & electric motorcycle Low speed power vehicle battery support communication, GPS tracking etc customized function

Cais

Storio 1.Energy

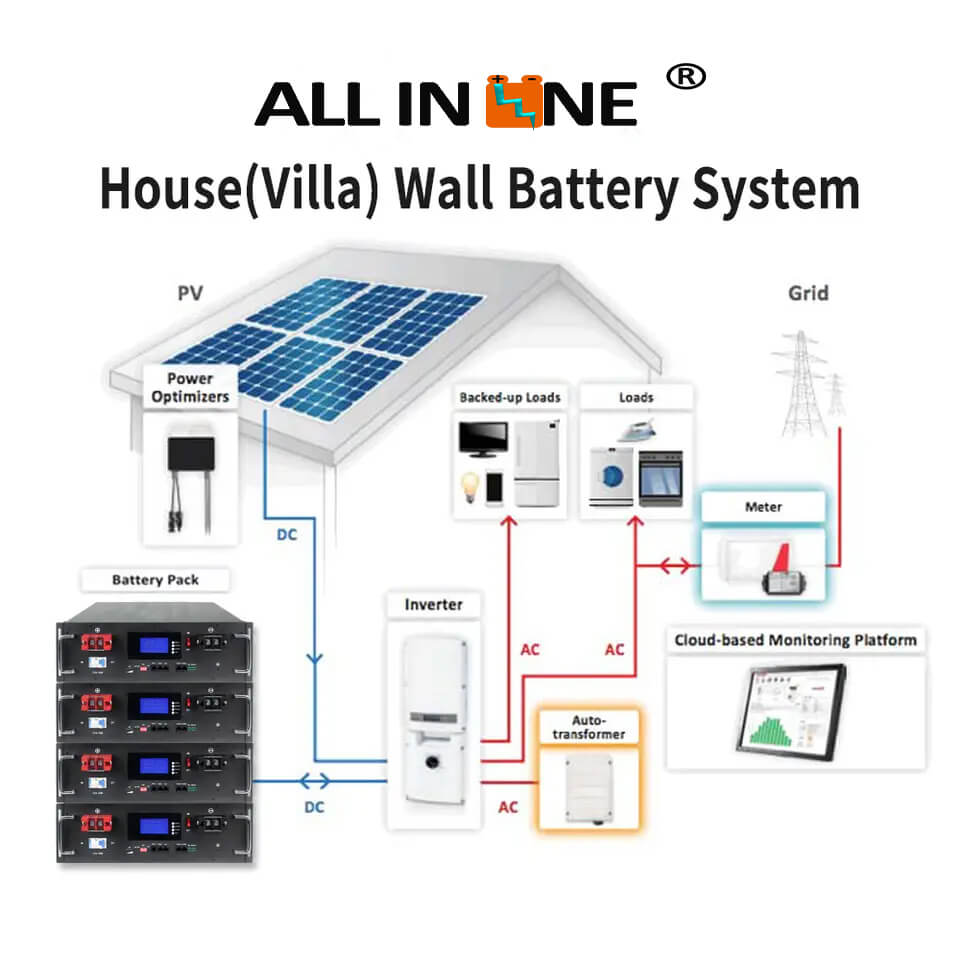

--System Pŵer Gwynt Solar / Grid Dinas (Ymlaen / I ffwrdd) / Cymuned a Theulu
System 2.Back-up ac UPS
--Telecommute Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment
Ceisiadau 3.Other
--Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light
--RV Motor home /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc

Ein Ffatri

Why choose ALL IN ONE as your supplier and partner?
* Competitive factory direct price with high quality
* Small MOQ
* Spot Supply for samples and drop shipping, bulk lead time is 15-20 working days
* DDP DDU delivery without tax and customs
* Excellent 18 hours online support from inquiry,installation,technical guide to after sales
* UN38.3, MSDS, ROHS, IEC, UL, CE, ISO9001 are certified
* Regional Customer Leads
* Professional team for OEM ODM custom service from inside to outside:
private logo, customized packaging, WIFI, Bluetooth, Communication Protocol, BMS function, high voltage or high current battery cabinet, free one stop solar energy system solution such as project design and engineer, MPPT charger, Inverter, battery racks etc.

Pacio A Llongau

ALL IN ONE manufactures safe , grade A brand new & high performance LFP energy storage battery including 48v liFePo4 battery ; wall mounted lifepo4 lithium batteries; Cabinet type high volt/amp lithium battery lifepo4 etc; Every cell could be tracked by QR codes and strictly tested before shipping.

Cwestiynau Cyffredin

Q1:Are you manufacturer?
A1: Yes, we are manufacturer in Anhui province.

Q2:Can you provide OEM and ODM services?
A2: Yes, we can. MOQ 100pcs for OEM and ODM to make sure your prices be more competitive in the market.

Q3:How to control the quality of your products?
A3: Our company has got the ISO9001 approval. Except the chips and packaging box outsourced,
the other parts are researched and produced by ourselves. Product Quality is fully controlled by ourselves
from beginning to end. 100% QC to make sure product in high-quality and low-defect before shipping.

Q4:What kind of certificates did the products have obtained?
A4: Most of our products certified with UL, FCC, PSE, CB, CE ,
which can cover the import requirements of most countries.

Q5: How long does the delivery takes for your products ?
A5: Stock delivery: 1-3 days; OEM/ODM lead time: 30-60 days

Nodyn: Rydym yn wneuthurwr batri. Nid yw'r holl gynhyrchion yn cefnogi manwerthu, dim ond B2B business.please cysylltwch â ni am brisiau cynnyrch!
