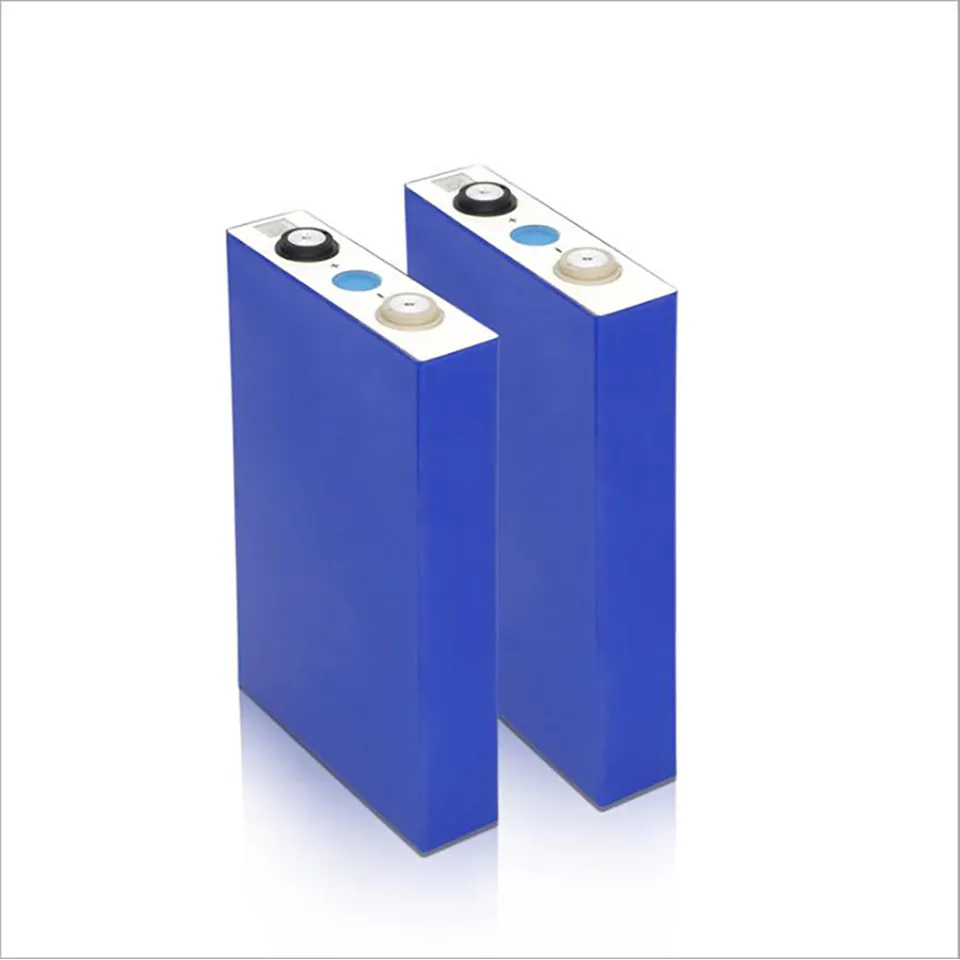

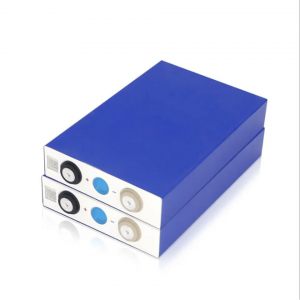

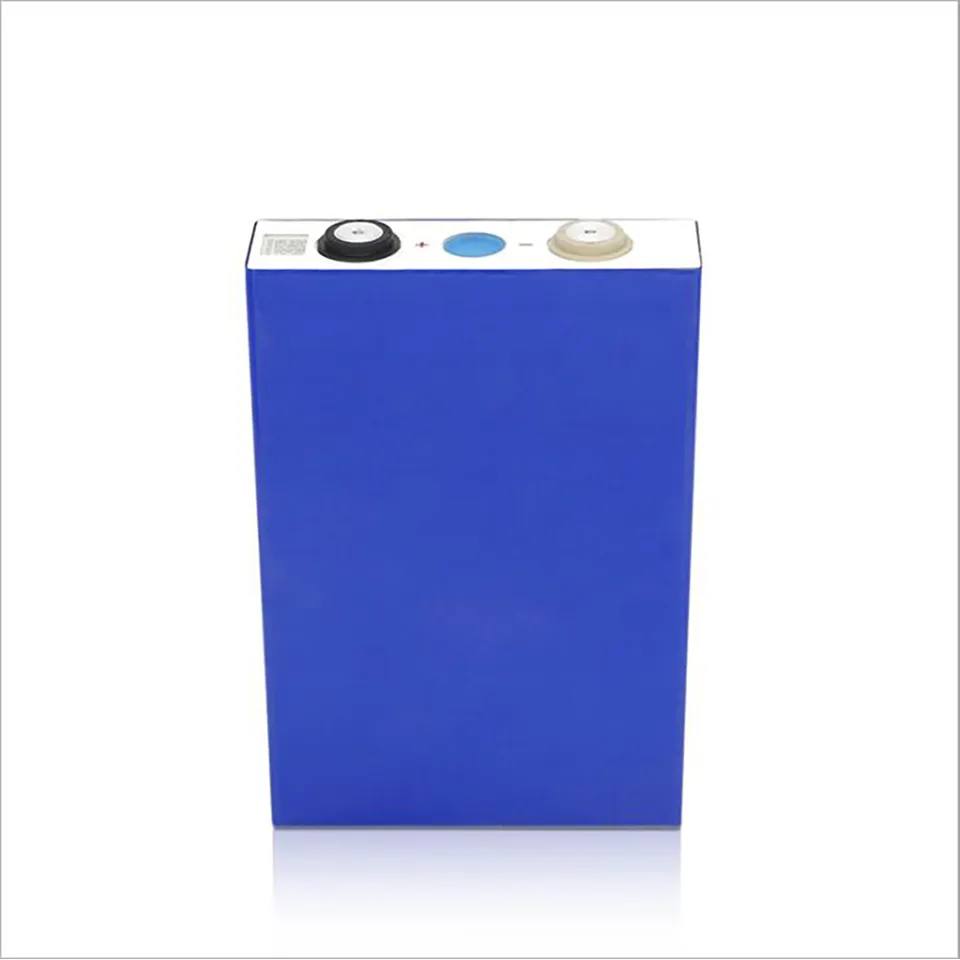

Batri Prismatig Lifepo4 3.2V 90Ah

2023-06-13 02:44

Manyleb

#	Eitem			Paramedr	Sylw
1	Cynhwysedd Enwol			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Tymheredd Codi Tâl			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Tymheredd Rhyddhau			-20°C~55°C
9	Tymheredd Storio		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C.	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C.
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Dimensiwn		Lled	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36.7 ± 0.5mm
14			High( Total)	200.5 ± 0.5mm
15			High（ Subject）	195.5 ± 0.5mm
16			Tabs Distance	67.0 ± 1.0mm
17	Pwysau Batri			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Cais

Ein Ffatri

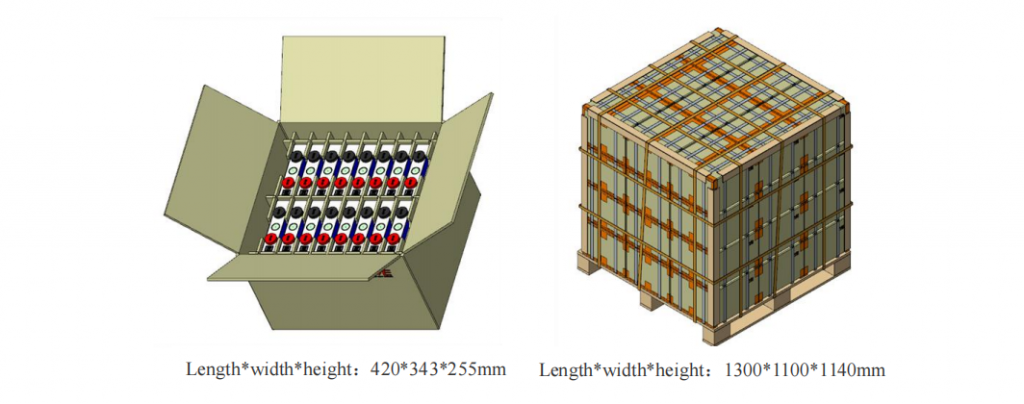

Pacio A Llongau

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Storio

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

Cwestiynau Cyffredin

C1. A allaf gael gorchymyn sampl?
A. Ydym, rydym yn croesawu archeb sampl i brofi a gwirio ansawdd.

C2. Beth am yr amser arweiniol?
A. Mae angen 3 diwrnod ar y sampl, mae angen amser cynhyrchu màs 5-7 wythnos, mae'n dibynnu ar faint archeb.

C3. Oes gennych chi unrhyw derfyn MOQ?
A. Oes, mae gennym MOQ ar gyfer cynhyrchu màs, mae'n dibynnu ar y gwahanol rifau rhan. Mae archeb sampl 1 ~ 10pcs ar gael. Mae MOQ isel, 1cc ar gyfer gwirio sampl ar gael.

C4. Sut ydych chi'n llongio'r nwyddau a pha mor hir mae'n ei gymryd i gyrraedd?
A. Fel rheol mae'n cymryd 5-7 diwrnod i gyrraedd. Mae llongau hedfan a môr hefyd yn ddewisol.

C5. Sut i fwrw ymlaen â gorchymyn?
A. Yn gyntaf, gadewch inni wybod eich gofynion neu'ch cais. Yn ail, Rydym yn dyfynnu yn ôl eich gofynion neu ein hawgrymiadau. Mae'r cwsmer yn cadarnhau'r samplau ac yn gosod blaendal ar gyfer archeb ffurfiol. Yn bedwerydd Rydym yn trefnu'r cynhyrchiad.

C6. A yw'n iawn argraffu fy logo ar y cynnyrch?
A. Ydw. Rhowch wybod i ni yn ffurfiol cyn ein cynhyrchiad a chadarnhewch y dyluniad yn gyntaf yn seiliedig ar ein sampl.

C7.Pa dystysgrifau sydd gennych chi?
A: Mae gennym CE / FCC / ROHS / UN38.3 / MSDS ... ac ati.

C8.Sut am warant?
A: Gwarant 3 blynedd
